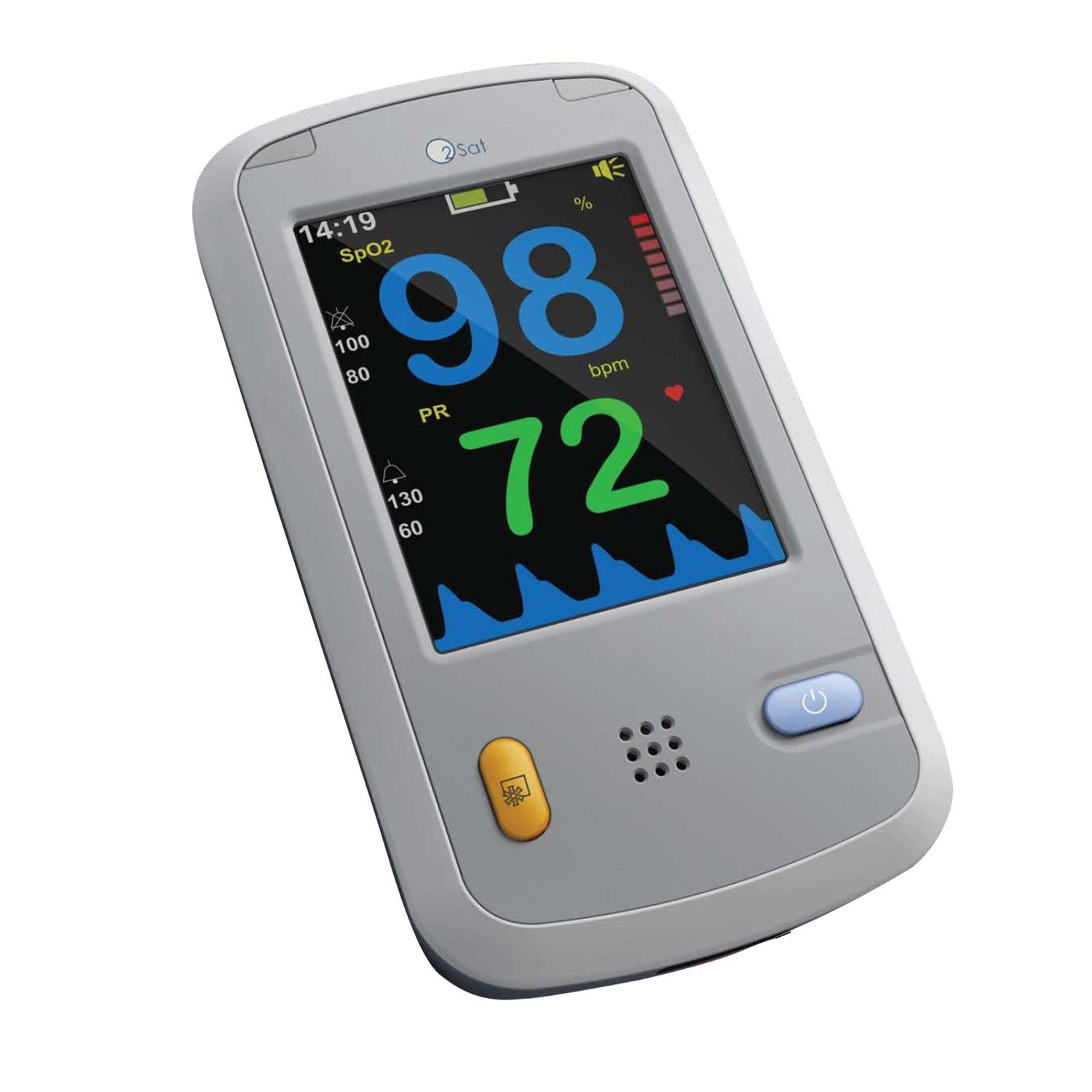

DRE Waveline Nano Handheld Pulse Oximeter V2
Wishlist
- Product SKU: DWN1576
- Category: Diagnostic Instruments, Pulse Oximetry, Vital Signs-Diagnostic Equipment
FEATURES:
- Sleek, compact design
- Fits comfortably in the palm of your hand
- Large Font and Waveform Display
- Easy Operation by 2.8" color TFT & Touch Screen
- Patient History Data Recall
- Two Display Directions
- Graphic and Tabular Trends
- Data Transfer and Storage to PC via USB or Bluetooth
- Continuously Adjustable Brightness
- Audio and Visual Alarm
- SpO2 Pulse-tone Modulation (Pitch Tone)
Â
SPECIFICATIONS:
SpO2
- Range: 0% - 100%
- Resolution: 1%
- Accuracy: 70% - 100%: ±2%
- 0%-69%: Unspecified
Heart (Pulse) Rate
- Range: 30 - 254 bpm
- Resolution: 1bpm
- Accuracy: ±2bpm or ±2%
- Alarm Range: 30~250 pbm
- Refreshing rate: 1s
Alarm
- Alarm: Probe off, Finger out, Low power
- Modes: Visual and Audio; User-adjustable High and Low limits
Display
- Type: 2.8" color TFT, touch screen
- Parameters: SpO2, PR, Pleth waveform, Pleth bar
- Display direction: 2
Record
- Patient ID: 10 patients
- Data Record: Up to 72 hours
Data Transmission
- Transmission Method: Data Transfer and Storage to PC via USB or Bluetooth
Record
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 65°C
- Operating Humidity: 10%RH to 90%RH
- Storage Humidity: 10%RH to 95%RH
Record
- Size: 4.6" Ă— 2.57" Ă— 1.10" (116.9 Ă— 65.3 Ă— 28.0 mm)
- Weight (without batteries): 3.88 oz (110 g)
Power
- Type: 3 AA Alkaline or Rechargeable batteries
- Operation time: About 9 hours for normal Operation
FEATURES:
- Sleek, compact design
- Fits comfortably in the palm of your hand
- Large Font and Waveform Display
- Easy Operation by 2.8" color TFT & Touch Screen
- Patient History Data Recall
- Two Display Directions
- Graphic and Tabular Trends
- Data Transfer and Storage to PC via USB or Bluetooth
- Continuously Adjustable Brightness
- Audio and Visual Alarm
- SpO2 Pulse-tone Modulation (Pitch Tone)
Â
SPECIFICATIONS:
SpO2
- Range: 0% - 100%
- Resolution: 1%
- Accuracy: 70% - 100%: ±2%
- 0%-69%: Unspecified
Heart (Pulse) Rate
- Range: 30 - 254 bpm
- Resolution: 1bpm
- Accuracy: ±2bpm or ±2%
- Alarm Range: 30~250 pbm
- Refreshing rate: 1s
Alarm
- Alarm: Probe off, Finger out, Low power
- Modes: Visual and Audio; User-adjustable High and Low limits
Display
- Type: 2.8" color TFT, touch screen
- Parameters: SpO2, PR, Pleth waveform, Pleth bar
- Display direction: 2
Record
- Patient ID: 10 patients
- Data Record: Up to 72 hours
Data Transmission
- Transmission Method: Data Transfer and Storage to PC via USB or Bluetooth
Record
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 65°C
- Operating Humidity: 10%RH to 90%RH
- Storage Humidity: 10%RH to 95%RH
Record
- Size: 4.6" Ă— 2.57" Ă— 1.10" (116.9 Ă— 65.3 Ă— 28.0 mm)
- Weight (without batteries): 3.88 oz (110 g)
Power
- Type: 3 AA Alkaline or Rechargeable batteries
- Operation time: About 9 hours for normal Operation
